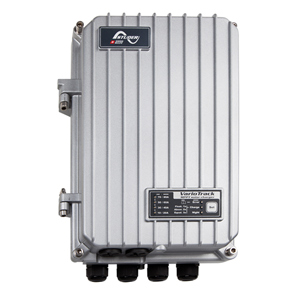

»ó Ç° ¸í VarioTrack VT-80 ( 150V 80A ) MPPT ž籤ÃæÀü±â
Á¦ Á¶ »ç STUDER ( SWISS MADE POWER )
ÆǸŰ¡°Ý 1,700,000 ¿ø
¼ö  ·®
°¡  °Ý ¿ø
Total ¿ø
Àå¹Ù±¸´Ï ´ã±â

»ó¼¼¼³¸í
Studer Xtender XTH, XTM, XTC studer, powermaster, ·Î¾â¿£Áö´Ï¾î¸µ, royal engineering, inverter, ÀιöÅÍ, ž籤¹ßÀü, µ¶¸³Çü ž籤 ÀιöÅÍ, dz·ÂÀιöÅÍ, ¼Ö¶ó, ¼Ö¶ó ÄÜÆ®·Ñ, solar charger, ·Î¾â Á¤ÇöÆÄÀιöÅÍ, »çÀÎÆÄ, Å ¾ç ÀüÁö¸ðµâ, xth, xtm, variotrack,solar inverter, battery charger, Åë½Å ¸ðµâ
¡¡

Studer MPPT Solar Charge Controller ( Swiss made Power )

Model : VarioTrack VT-80 ( 80A , 12Vdc, 24Vdc, 48Vdc )

VarioTrack ½Ã¸®Áî´Â ¿Ïº®ÇÏ °Ô ±¸¼ºÇÏ°í °¡Àå ³ôÀº ¾÷°è Ç¥ÁØ¿¡ ¸Â°Ô °³¹ß, MPPT ž籤 ÃæÀü ÄÁÆ®·Ñ·¯ VarioTrack ¸ðµç ž籤 ¹ßÀü ½Ã½ºÅÛ¿¡¼­ ¿¡³ÊÁö¸¦ °Ë»öÇؼ­ ÃÖ´ë È¿À²À» º¸Àå ÇÕ´Ï´Ù.

žçÀüÁö Æгΰú ¹èÅ͸®¿¡ ¿¬°áµÇ¾î, ž籤 Ãæ Àü ÄÁÆ®·Ñ·¯ VarioTrackÀÌ ÀÚµ¿À¸·Î ¹èÅ͸®¸¦ ÃÖÀûÀÇ ÃæÀü ¹æ¹ýÀ¸·Î ÃÖ´ë ÆÄ¿ö Æ÷ÀÎÆ® ÃßÀû( MPPT ) À» À§ÇÑ ¾Ë°í¸®ÁòÀ» »ç¿ë ÇÏ¿© ž籤 ¹ßÀüÀ» ÇÕ´Ï´Ù.
MPPT´Â žçÀüÁö ¸ðµâ¿¡¼­ ÃÖÀûÀÇ Àü·Â °ú ÃÖ´ë »ç¿ë °¡´ÉÇÑ ¿¡³ÊÁö °Ë»öÀ» Áö¼ÓÀûÀ¸·Î ã¾Æ¼­ ÃÖ°íÀÇ È¿À²·Î ÃàÀüÁö¿¡ ÃæÀüÀ» ÇÏ°Ô µË´Ï´Ù. ¹ßÀü·®Àº ¾ß¿Ü Á¶°Ç ( ÀÏÁ¶·®, ¿Âµµ...)¿¡ µû¶ó ´Ù¸¨´Ï ´Ù.

VarioTrackÀÇ ±â´É ¹× Ư¡

  • ÃÖÀûÀÇ ¿¡³ÊÁö »ý»êÀ» º¸ Àå

  • È¿À²¼º ÃßÀû: > 99%

  • º¯È¯ È¿À²: 98%

  • ´õ ±æ¾îÁø ¹èÅ͸® ¼ö¸í À» À§ÇÑ °íÈ¿À² 4 ´Ü°è ÃæÀü±â

  • Ç¥ÁØ 8°¡Áö·Î Á¤ÀÇ µÈ ¹è Å͸® ÃæÀü °î¼±

  • RCC-02 / 03¿Í ¹èÅ͸® ÀÇ ºÎÇÏ °î¼±¿¡ ´ëÇؼ­ ÀÚÀ¯·Î¿î ÇÁ·Î±×·¡¹Ö

  • ³·Àº ÀÚü ¼Òºñ: < ¾ß °£ ¸ðµå¿¡¼­ 1W

  • À߸ø µÈ °á¼±¿¡ ´ëÇÑ º¸ È£

  • ¿ª ±Ø¼º º¸È£

  • Àý¿¬µî±Þ IP54

  • Æ÷°ýÀûÀÎ µð½ºÇ÷¹ÀÌ, ÇÁ ·Î±×·¡¹Ö ¹× µ¥ÀÌÅÍ ·Î±ë°ú RCC-02 / 03

  • µ¿ÀÏÇÑ Åë½Å ¹ö½º¿¡ µ¿½Ã ¿¡ ÃÖ´ë 15´ë º´·Ä ¿¬°á °¡´É ( VarioTrackÀÇ ¿ë·® Áõ´ë )

  • ¸ðµç ž籤 ¹ßÀü ½Ã½º ÅÛ ÀåÄ¡¿¡ ȣȯ

  • Xtender ½Ã½ºÅÛ¿¡ µ¿±â È­ µÈ ¹èÅ͸® °ü¸®¿¡ ÃÖÀû »ç¿ë

  • Àü¸éÀÇ LED Ç¥½Ã¿¡ ÀÇÇÑ ÃæÀü»óÅ ǥ½Ã

Specifications
Model

VarioTrack VT-80
¡¡

Electrical Characteristics PV Array Side ¡¡ ¡¡ ¡¡
Maximum Solar Power Recommended

¡¡
12V 24V 48V
1250W 2500W 5000W
Maximum Solar Open Circuit Voltage 80Vdc 150Vdc
Max. Solar Functional Circuit Voltage
¡¡
12V 24V 48V
75Vdc 145Vdc 145Vdc
Electrical Characteristics Battery Side ¡¡
Maximum Output Current 80A
Nominal Battery Voltages automatic/ manual set to 12,24 or 48Vdc
Operating Voltage Range 7-68V
Performances Of The Device ¡¡
Power Conversion Efficiency
( 48V typical-system )
98%
Maximum Stand-By Self-Consumption (48V) 25 mA > 1.2W
Maximum Stand-By Self-Consumption (24V) 30 mA > 0.8W
Maximum Stand-By Self-Consumption (12V) 35 mA > 0.5W
Charging Stages 4 stages: Bulk, Absorption, Float, Equalization
Battery Temperature Compensation -3mV /¡ÆC/cell (25¡ÆC ref) default value adjustable -8 to 0 mV/¡ÆC
Electronic Protections ¡¡
PV Reverse Polarity protected
Battery Reverse Polarity up to -150 Vdc
Battery Overvoltage up to 150 Vdc
Over Temperature protected
Reverse Current At Night prevented by relays
Transient Surge Protection 3000 Watts/ port
Environment ¡¡
Operating Ambient Temperature Range -20 to 55¡ÆC
Humidity 100%
Ingress Protection Of Enclosures IP54, IEC/ EN 60529:2001
Mounting Location indoor
General Data ¡¡
Warranty 3 years
Weight 5.5 kg
Dimensions h/w/l [mm] 120/ 220/ 350
Parallel Operation (separated PV arrays) up to 15 devices
Max Wire Size 35 mm2
Glands M 20 x 1,5
Communication ¡¡
Network Cabling STUDER Communication BUS
Remote Display And Controller RCC-02/-03 / Xcom-232i
Menu Languages English/ French/ German/ Spanish
Data Logging with RCC-02/03 on SD card - One point every minute
Accordance To Standards ¡¡
CE Compliant EMC 2004/108/CE - LV 2006/95/CE - RoHS 2002/95/CE
Safety IEC/EN 62109-1:2010
EMC (Electro Magnetic Compatibility) IEC/EN 61000-6-3:2011 - IEC/EN 61000-6-1:2005
