Product
features
• Maximum
Power Point Tracker (MPPT tracker)
• Voltage and
current regulation
• PWM control
• Current
compensated load disconnection
• Automatic
load reconnection
•
Temperature
compensation
• Monthly
maintenance charge
Electronic protection functions
• Over charge
protection
• Deep
discharge protection
• Reverse
polarity protection of load, module and battery
• Reverse
polarity protection by internal fuse
• Automatic
electronic fuse
• Short
circuit protection at module input
• Overvoltage
protection at module input
• Open circuit
protection without battery
• Reverse
current protection at night
• Over
temperature and overload protection
• Battery
overvoltage shutdown
Displays
•
Multifunction LED display
• Multi-coloured
LED
• 5LEDs show
operating states for operation , state of charge, fault messages
Options
•
Night light
function pre-set in the factory or adjustable via Fangpusun PA RC100
•
Parameterisation of function values via PA RC100
Certificates
•
Compliant
with European Standards (CE)
• ROHS
compliant
Specifications
|

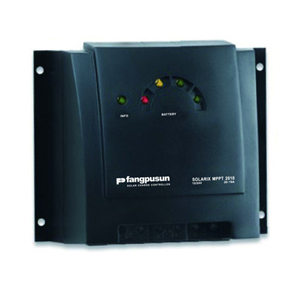

Model :
MPPT 2010 |
|
Characterisation of the operating performance |
|
System voltage |
12V(24V) |
|
Nominal power |
250w(500w) |
|
Max.
efficiency |
＞98%
|
|
Own
consumption |
10mA |
|
DC input side |
|
MPPT
voltage |
15v(30v)＜Vmodule
＜＜100v |
|
Open
circuit voltage solar module |
17v…100v(24v…100v) |
|
Module current |
18A |
|
DC output side |
|
Charge current |
20A |
|
Load
current |
10A |
|
End
of charge voltage |
13.9V(27.8V) |
|
Boost charge voltage |
14.4V(28.8V) |
|
Equalisation charge |
14.7v(29.4v) |
|
Reconnection voltage (LVR) |
12.5V(25V)
|
|
Deep
discharge protection (LVD) |
11.5V(23V)
|
|
Operating conditions |
|
Ambient temperature |
-25℃…
+40℃
|
|
Fitting and construction |
|
Terminal ( fine/ single wire ) |
16m㎡/25m
㎡-AWG6/4 |
|
Degree of protection |
IP
32 |
|
Dimension ( X x Y x Z) |
187
x 153 x 68mm |
|
Weight |
900g |
|
 |
|
Dimension |
|
 |
|
