Product Description
Character:
- 3 LED Display
- Short-circuit Protection
- Overload protection
- Reverse polarity protection
- Automatic multi-rate charging function
- Over load current protection
- Fans are controlled by floating voltage.
- Temperature protection
- Over charge protection
- Charging curve selection
- High efficiency & frequency design
- Exquisite case design
- Charge for Lead-Acid Battery

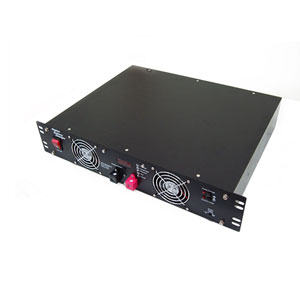

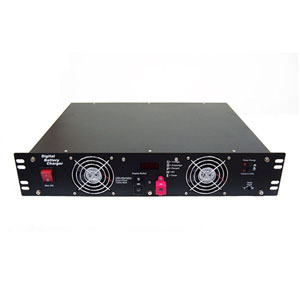

Description:
22Amp;
48Vdc
DBC series battery
chargers can save above 25% cost of
main power; which can
also protect your batteries and
extend the life of
batteries.
Specifications:
| Model No. | PM- DBC-2248D | |
| OUTPUT | Voltage | 48V |
| Current | 22A | |
| Equalizer Charge | 57.6V +/- 0.1V | |
| Float Charge | 54.4V +/- 0.1V | |
| Efficiency | > 87% (at full load) | |
| INPUT | Voltage | 110V or 220V |
| Frequency | 47~63HZ | |
| PROTECTION | Battery Reverse | Yes |
| Short Circuit | Yes | |
| Overload | Yes | |
| Temperature | Yes; when degree around 65°C~75°C; it will stop charging | |
| Cooling fan | Fans are controlled by floating voltage. | |
| INDICATORS | LED | 3 LED Display: Red (power); green (floating charge) & orange (equalizer charge) |
| LCD | YES | |
| Current Meter | YES | |
| MECHANICAL | Dimensions (mm) | |
| Weight (KGS) | ||
|
O/P Wires or Terminal |
100W-300W: Microphone Connector or Alligator Clips ; Other models: Terminal | |
