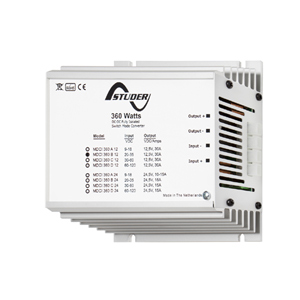

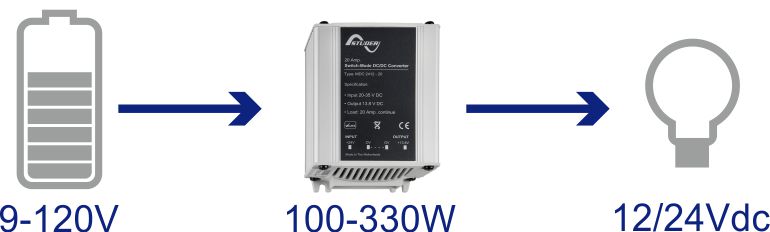

The DC/DC converters
MDCI are used, depending
on the model, either to step up or to step down a
DC voltage.
The MDCI range converters are electrically
isolated.
| Power [W] | Input variants [Vdc] * | Output variants [Vdc/A] ± 2% | Output current [A] | Isolated | |
|---|---|---|---|---|---|
| MDCI 100 | 100 | A-B- C-D | 12.5 / 8, 24.5 / 4 | 8 / 4 | Oui |
| MDCI 200 | 200 | A-B- C-D | 12.5 / 16, 24.5 / 8 | 16.5 / 8 | Oui |
| MDCI 360 | 360 | A-B-C-D | 12.5 / 30, 24.5 / 15 | 30 / 15 | Oui |
| MDCI 360 Charger | 360 | A | 27.6 / 13 | 13 | Oui |
Features and Performances:
- High efficiency
- Low consumption
- Protection against short-circuit, overheating overvoltage and reverse polarity
- Great stability of the output voltage for a more reliable system
- Galvanic isolation
