상 품 명 PM-P55ASTL55W ProLED가로등기구 정격 55W AC/DC 겸용
제 조 사 Power Master( 대만 )/ 로얄
판매가격 0 원
수  량
가  격
Total
장바구니 담기

상세설명
LED 가로등기구, LED 가로등, 가로등, 태양광 가로등, 독립형 태양광 LED 가로등, 풍력발전 LED 가로등

Pro LED Solar Street Light- ES

Model

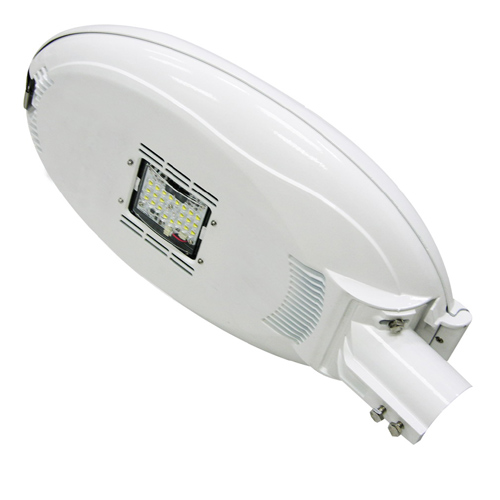

PM-P55ASTL-55W LED Street Lamp

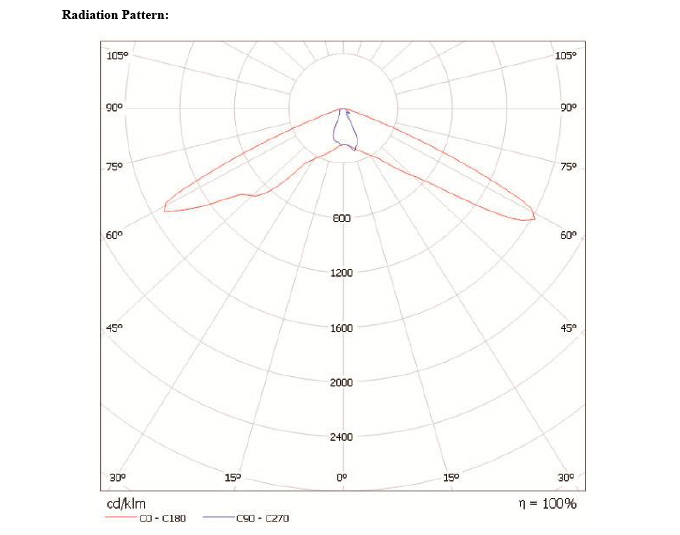

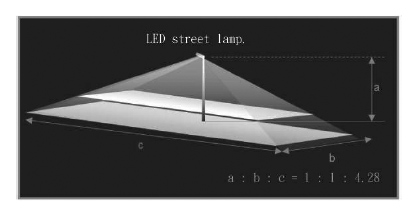

Light Aspect Ratio Specification
(Default: Type 2)
Module

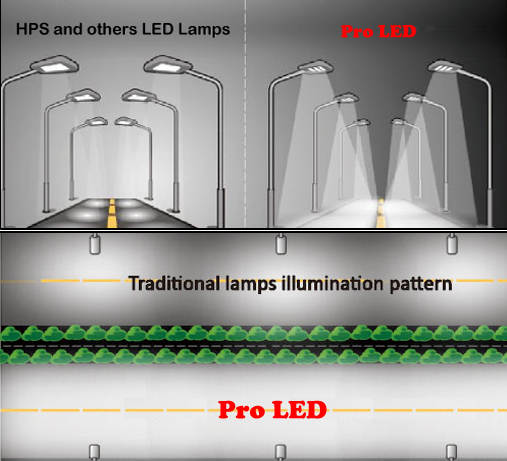

Simulation

Character:

Modular Integration, of all vital functions into one compact and light weight modular
LED light engine.
LED Component Efficiency, by selection of first grade components such as the "Philips Lumileds Rebel" LED emitters.
Certified by the "Energy Star"
Thermal Management, by the proprietary SFCT (Smart Forced Convection Technology) and PCT (Precision Cooling Technology) technology.
Optics Design that fully realizes the advantage of LED directional emission.

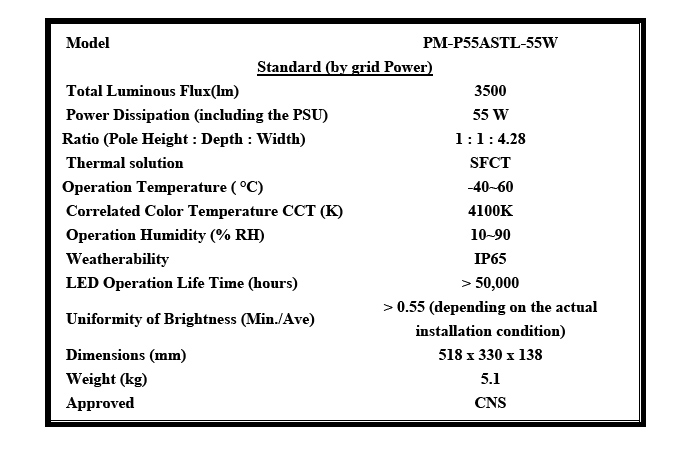

Specifications:

Wattage
55W
Model
PM-P55ASTL-55W- ES
Flux (lm)
4000
CCT (K)
5300
Input Power (W)
51
Power
MW HLG-60H-48
Luminous Efficacy (lm/W)
78.43
Effective Beam Angle
140*50
Avg. Typical Lux
3M
86
4M
48
5M
31
6M
22
7M
16
8M
12
9M
10
10M
8
11M
6
12M
5
Pole Height
6M
Arm Length
1.5M
Tilt Angle
15°
Width
6M
Poles Distance
24M
Coverage
6M*24M
Illumination Uniformity
45%
Thermal solution
SFCT
Operation voltage (Vac)
85~280Vac (by Grid Power)
Operation Freq.(Hz)
50~60Hz ( by Grid Power)
Operation Temperature (°C)
-40~60
Operation Humidity (% RH)
10~90
Weatherability
IP65
LED Operation Life Time (hours)
> 50,000

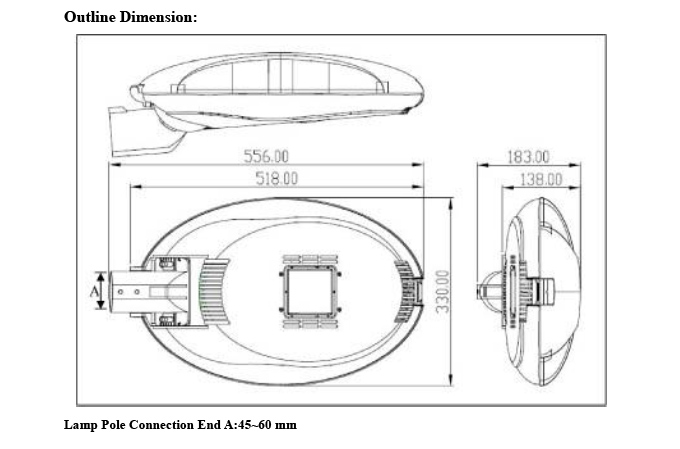

Dimensions (mm)
518 x 330 x 138
Weight (kg)
10.2
Approved
cULus/FCC

독립형 태양광 LED 가로등의 구성도



Product Description:

We have honor introducing the PM-P55ASTL-55W LED Street Lamp. Utilizing LED components from Philips-Lumileds Rebel, the total flux reached 3000 lumen with power consumption of only 50 Watt, sufficient to replace traditional HID or HPS lamps of 100 Watt. Benefitted from advanced optics technology,

its projection is precision controlled within a defined square plot with exceptional homogeneity. Crossing over

the technology and tradition ends, while its performance parts changed to LED technology, its outside retains

the elegant curve and shape of traditional street lamps.

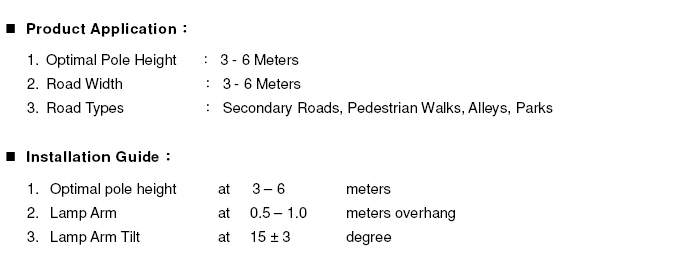

Product Application:

1. Optimal Pole Height : 3 – 6 Meters

2. Road Width : 3 – 6 Meters

3. Road Types : Secondary Roads, Pedestrian Walks, Alleys, Parks

.

Main Features:

1. Adopting the revolutionary Power Master LED modules, which integrates LED emitters,

optics and lens, and heat dissipation, all into a compact IP 65 Al-Gard platform.

2. LED components by Philips Lumileds Rebel.

3. No concerns of patent or IP infringement.

4. Unique square radiation pattern from the technology, no more bright-and dark “zebra stripe”
problems.

5. Exceptional Brightness Homogeneity, over 0.55 Min. / Ave. within the projection area.

6. Significant energy saving over traditional technology, over 60% *Note 1.

7. LED Operating Life: Over 50,000 hours *Note 2.

8. Weather ability: IP 65

9. Heat Dissipation : FCT



Note 1 :
Condition of : Pole height at 5 meters, average effective surface bright at over 21.6 Lux, the comparison of power consumption by 50 Watt LED street lamp set using Power Master, and 100 Watt street lamp set using tradition HIP/ HPS technology.

Note 2 : Lumen maintenance of LED components at over 70%.

PM-P25ASTL- 55W LED Street Lamp




PM-P55ASTL-55W LED Street Lamp

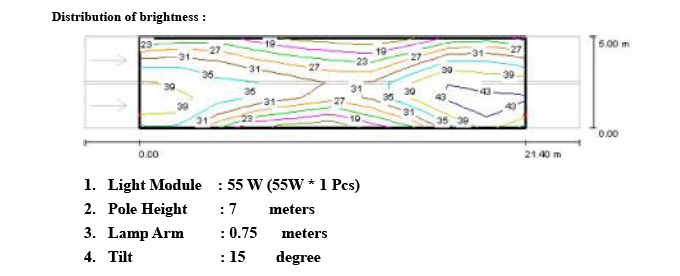

Lux readings over different height :

Height

Average Lux

Area

3M

86.9

3 * 12.8 M

4M

48.9

4 * 17.1 M

5M

31.3

5 * 21.4M

6M

21.7

6 * 25.7 M



PM-P55ASTL-55W LED Street Lamp
