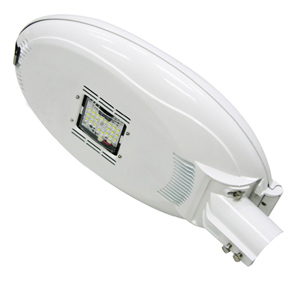

상 품 명 PM-P75ASTL75W ProLED가로등기구 정격 75W AC/DC 겸용
제 조 사 Power Master( 대만 )/ 로얄
판매가격 0 원
수  량
가  격
Total
장바구니 담기

상세설명
LED 가로등기구, LED 가로등, 가로등, 태양광 가로등, 독립형 태양광 LED 가로등, 풍력발전 LED 가로등

Pro LED Solar Street Light- ES

Model

PM-P75ASTL-75W LED Street Lamp





Light Aspect Ratio Specification
(Default: Type 2)
Module
Simulation

Character:

Modular Integration, of all vital functions into one compact and light weight modular
LED light engine.
LED Component Efficiency, by selection of first grade components such as the "Philips Lumileds Rebel" LED emitters.
Certified by the "Energy Star"
Thermal Management, by the proprietary SFCT (Smart Forced Convection Technology) and PCT (Precision Cooling Technology) technology.
Optics Design that fully realizes the advantage of LED directional emission.

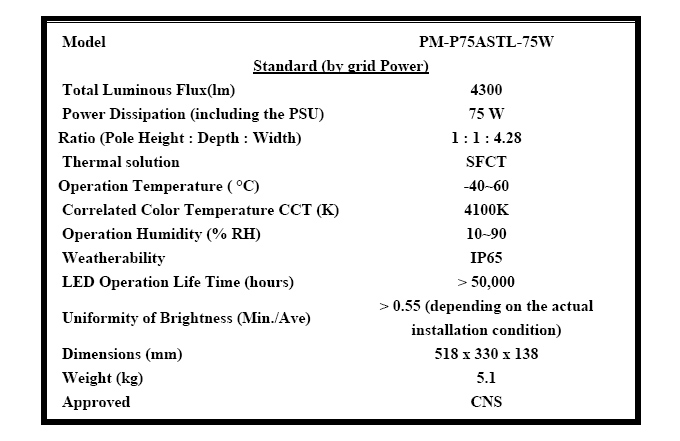

Specifications:

Wattage
75W
Model
PM-P75ASTL- 75W-ES
Flux (lm)
5268
CCT (K)
5300
Input Power (W)
70.2
Power
YGE LL-75C- 85*1
Luminous Efficacy (lm/W)
75.04
Effective Beam Angle
140*50
Avg. Typical Lux
3M
111
4M
62
5M
40
6M
28
7M
20
8M
16
9M
12
10M
10
11M
8
12M
7
Pole Height
7M
8M
Arm Length
1.17M
1.33M
Tilt Angle
15°
15°
Width
7M
8M
Poles Distance
28M
32M
Coverage
7M*28M
8M*32M
Illumination Uniformity
45%
Thermal solution
SFCT
Operation voltage (Vac)
85~280Vac (by Grid Power)
Operation Freq.(Hz)
50~60Hz (by Grid Power)
Operation Temperature (°C)
- 40~60
Operation Humidity (% RH)
10~90
Weatherability
IP65
LED Operation Life Time (hours)
> 50,000

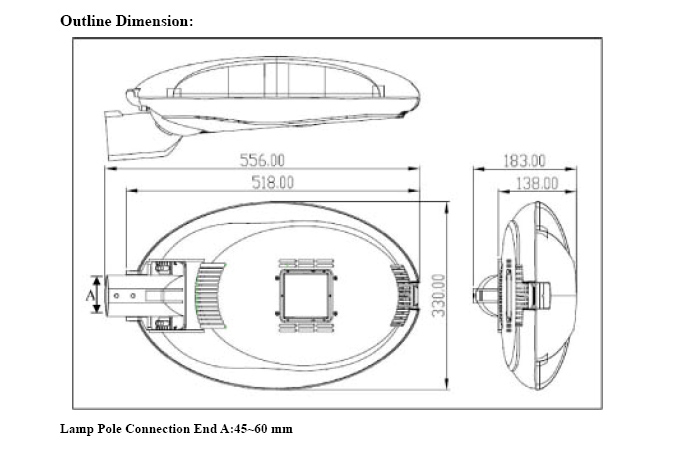

Dimensions (mm)
518 x 330 x 138
Weight (kg)
5.1
Approved
CE

독립형 태양광 LED 가로등의 구성도



Product Description:

We have honor introducing the PM-A75ASTL-75W LED Street Lamp. Utilizing LED components from Philips-Lumileds Rebel, the total flux reached 4300 lumen with power consumption of only 75 Watt, sufficient to replace traditional HID or HPS lamps of 150 Watt. Benefitted from advanced optics technology, its projection is precision controlled within a defined square plot with exceptional homogeneity. Crossing over the technology and tradition ends, while its performance parts changed to LED technology, its outside retains the elegant curve and shape of traditional street lamps.

Product Application:



1. Optimal Pole Height 3 – 6 Meters
2. Road Width 3 – 6 Meters
3. Road Types Main Streets, Secondary Roads



Main Features:

1. Adopting the revolutionary Power Master LED modules, which integrates LED emitters, optics and lens, and heat dissipation, all into a compact IP 65 Al-Gard platform.

2. LED components by Philips Lumileds Rebel.

3. No concerns of patent or IP infringement.

4. Unique square radiation pattern from the technology, no more bright-and dark “zebra stripe” problems.

5. Exceptional Brightness Homogeneity, over 0.55 Min. / Ave. within the projection area.

6. Significant energy saving over traditional technology, over 60% *Note 1.

7. LED Operating Life: Over 50,000 hours *Note 2.

8. Weather ability: IP 65

9. Heat Dissipation : SFCT

Note 1 : Condition of : Pole height at 5 meters, average effective surface bright at over 75 Lux, the comparison of power consumption by 75 Watt LED street lamp set using Power Master, and 150 Watt street lamp set using tradition HIP/ HPS technology.

Note 2 : Lumen maintenance of LED components at over 70%.

PM-P75ASTL- 75W LED Street Lamp




PM-P75ASTL-75W LED Street Lamp

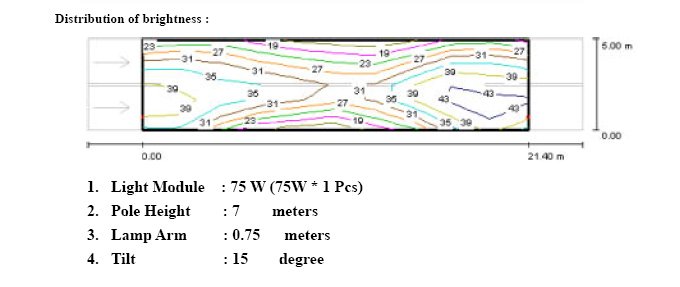

Lux readings over different height :

Height

Average Lux

Area

3M

86.9

3 * 12.8 M

4M

48.9

4 * 17.1 M

5M

31.3

5 * 21.4M

6M

21.7

6 * 25.7 M



PM-P75ASTL-75W LED Street Lamp
