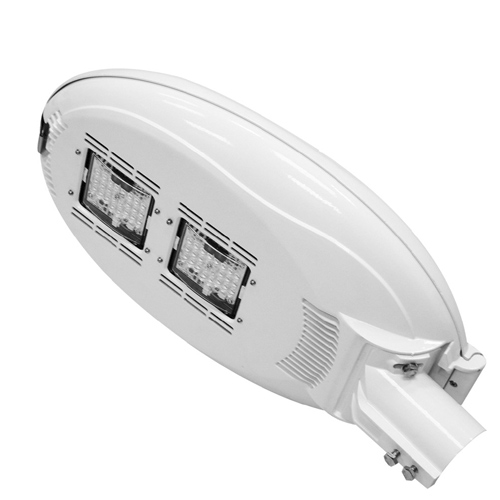

상 품 명 PM-P75ASTL150W ProLED가로등기구 정격 150W 85~285Vac
제 조 사 Power Master( 대만 )/ 로얄
판매가격 0 원
수  량
가  격
Total
장바구니 담기

상세설명
LED 가로등기구, LED 가로등, 가로등, 태양광 가로등, 독립형 태양광 LED 가로등, 풍력발전 LED 가로등

Pro LED Solar Street Light- ES

Model

PM-P75ASTL-150W LED Street Lamp





Light Aspect Ratio Specification
(Default: Type 2)
Module
Simulation

Character:

Modular Integration, of all vital functions into one compact and light weight modular
LED light engine.
LED Component Efficiency, by selection of first grade components such as the "Philips Lumileds Rebel" LED emitters.
Certified by the "Energy Star"
Thermal Management, by the proprietary SFCT (Smart Forced Convection Technology) and PCT (Precision Cooling Technology) technology.
Optics Design that fully realizes the advantage of LED directional emission.

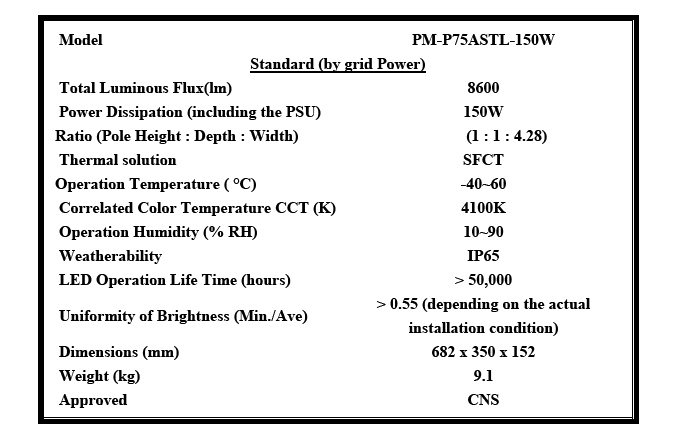

Specifications:

Wattage
150W
Model
PM-P75ASTL-150W-ES
Flux (lm)
10536
CCT (K)
5300
Input Power (W)
148.7
Power
YGE LL-150C-85*1
Luminous Efficacy (lm/W)
70.85
Effective Beam Angle
140*50
Avg. Typical Lux
3M
222
4M
124
5M
80
6M
56
7M
40
8M
32
9M
24
10M
20
11M
16
12M
14
Pole Height
8M
10M
Arm Length
1.33M
1.67M
Tilt Angle
15°
15°
Width
8M
10M
Poles Distance
32M
40M
Coverage
8M*32M
10M*40M
Illumination Uniformity
45%
Thermal solution
SFCT
Operation voltage (Vac)
85~280Vac (by Grid Power)
Operation Freq.(Hz)
50~60Hz (by Grid Power)
Operation Temperature (°C)
-40~60
Operation Humidity (% RH)
10~90
Weatherability
IP65
LED Operation Life Time (hours)
> 50,000

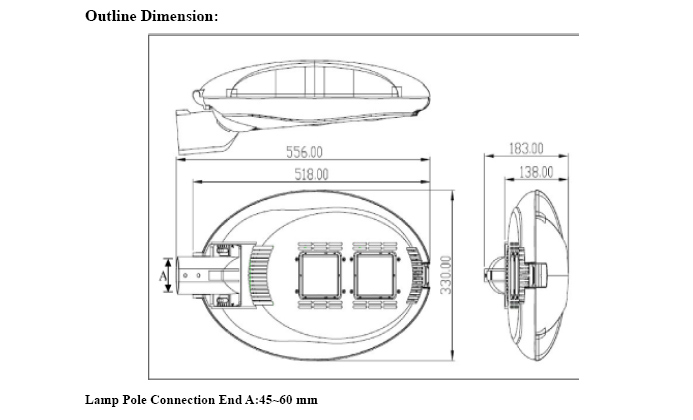

Dimensions (mm)
518 x 330 x 138
Weight (kg)
6.0


독립형 태양광 LED 가로등의 구성도



Product Description:

We have honor introducing the PM-A75ASTL-150W LED Street Lamp. Utilizing LED components from Philips-Lumileds Rebel, the total flux reached 8600 lumen with power consumption of only 150 Watt, sufficient to replace traditional HID or HPS lamps of 300 Watt. Benefitted from advanced optics technology, its projection is precision controlled within a defined square plot with exceptional homogeneity. Crossing over the technology and tradition ends, while its performance parts changed to LED technology, its outside retains the elegant curve and shape of traditional street lamps.

Product Application:



1. Optimal Pole Height 4 – 8 Meters
2. Road Width 4 – 8 Meters
3. Road Types Highway, Main Streets, Secondary Roads



Main Features:

1. Adopting the revolutionary Power Master LED modules, which integrates LED emitters, optics and lens, and heat dissipation, all into a compact IP 65 Al-Gard platform.

2. LED components by Philips Lumileds Rebel.

3. No concerns of patent or IP infringement.

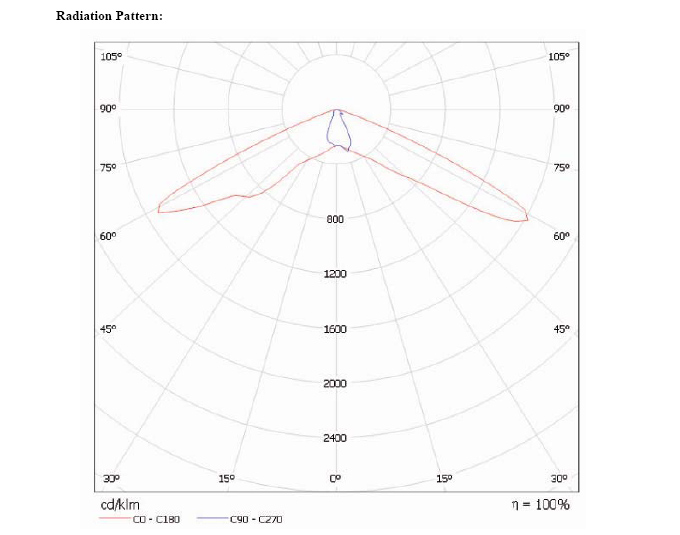

4. Unique square radiation pattern from the technology, no more bright-and dark “zebra stripe” problems.

5. Exceptional Brightness Homogeneity, over 0.55 Min. / Ave. within the projection area.

6. Significant energy saving over traditional technology, over 60% *Note 1.

7. LED Operating Life: Over 50,000 hours *Note 2.

8. Weather ability: IP 65

9. Heat Dissipation : SFCT

Note 1 : Condition of : Pole height at 5 meters, average effective surface bright at over 75 Lux, the comparison of power consumption by 75 Watt LED street lamp set using Power Master, and 150 Watt street lamp set using tradition HIP/ HPS technology.

Note 2 : Lumen maintenance of LED components at over 70%.

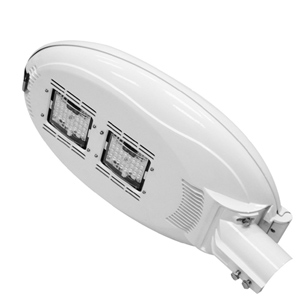

PM-P75ASTL- 150W LED Street Lamp




PM-P75ASTL-150W LED Street Lamp

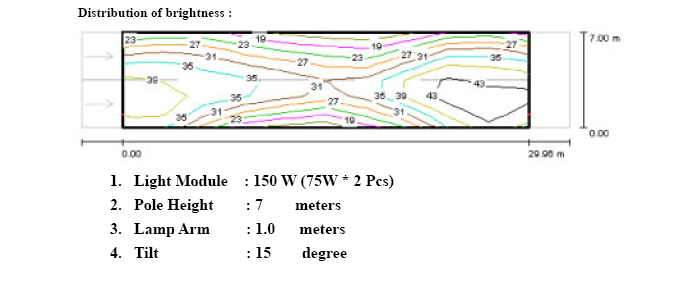

Lux readings over different height :

Height

Average Lux

Area

3M

86.9

3 * 12.8 M

4M

48.9

4 * 17.1 M

5M

31.3

5 * 21.4M

6M

21.7

6 * 25.7 M



PM-P75ASTL-150W LED Street Lamp
