Product
Description:
We have honor

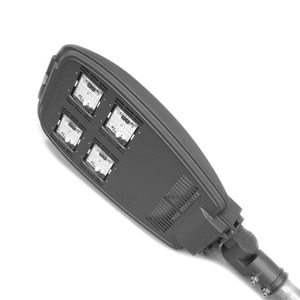

introducing the PM-P55BSTL-220W LED Street Lamp. Utilizing LED components from
Philips-Lumileds Rebel, the total flux reached 14000 lumen with power
consumption of only
220 Watt, sufficient to replace
traditional HID or HPS lamps of 530 Watt. Benefitted from advanced optics
technology, its projection is precision controlled within a defined square plot
with exceptional homogeneity. Crossing over the technology and tradition ends,
while its performance parts changed to LED technology, its outsided retains the
elegant curve and shape of traditional street lamps.
Product Application:
| 1.
Optimal Pole Height |
8– 12 Meters |
| 2.
Road Width |
:8 – 12
Meters |
| 3.
Road Types |
Main Streets,
Secondary Roads |
Main Features:
1.
Adopting the revolutionary
Power Master LED modules, which integrates LED emitters,
optics and lens, and
heat dissipation, all into a compact IP 65 Al-Gard platform.
2.
LED components by Philips
Lumileds Rebel.
3.
No concerns of patent or IP
infringement.
4.

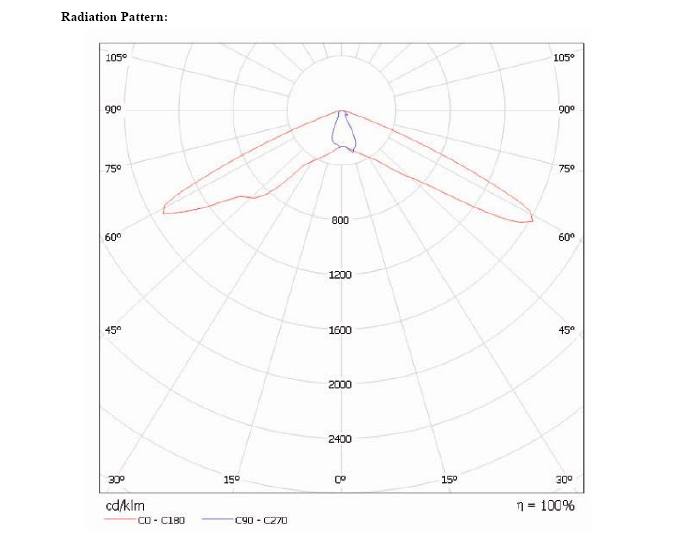

Unique square radiation
pattern from the technology, no more bright-and
dark “zebra stripe” problems.
5.

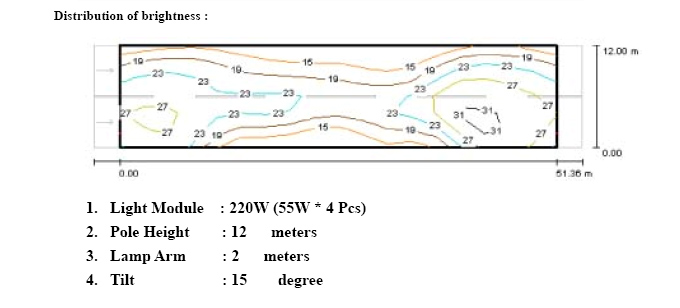

Exceptional Brightness
Homogeneity, over 0.55 Min. / Ave. within the projection area.
6.
Significant energy saving
over traditional technology, over 60% *Note 1.
7.
LED Operating Life: Over
50,000 hours *Note 2.
8.
Weather ability: IP
65
9. Heat Dissipation :
SFCT
Note 1 : Condition of : Pole height at
12 meters, average effective surface bright at over 17.5 Lux, the comparison of
power consumption by 530 Watt LED street lamp set using Power Master, and 150
Watt street lamp set using tradition HIP/ HPS technology.
Note 2 : Lumen maintenance of LED
components at over 70%. |
