상 품 명 PM-P75BSTL300W ProLED가로등기구 정격 300W 85~285Vac
제 조 사 Power Master( 대만 )/ 로얄
판매가격 0 원
수  량
가  격
Total
장바구니 담기

상세설명
LED 가로등기구, LED 가로등, 가로등, 태양광 가로등, 독립형 태양광 LED 가로등, 풍력발전 LED 가로등

Pro LED Solar Street Light- ES

Model

PM-P75BSTL-300W LED Street Lamp

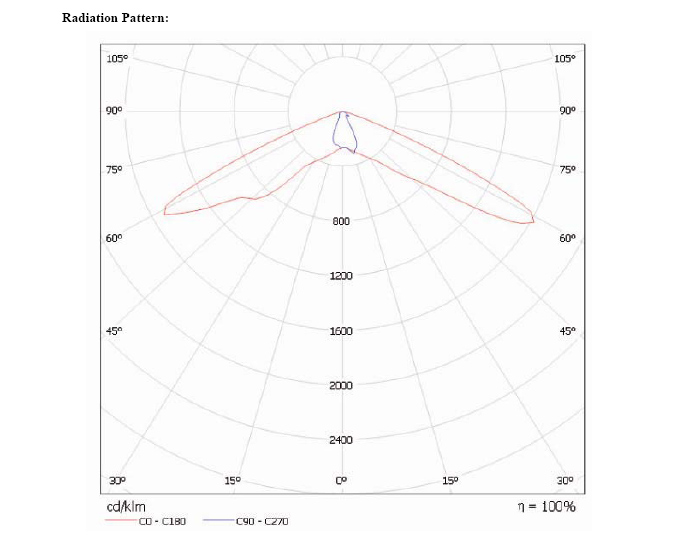

Light Aspect Ratio Specification
(Default: Type 2)
Module
Simulation

Character:

Modular Integration, of all vital functions into one compact and light weight modular
LED light engine.
LED Component Efficiency, by selection of first grade components such as the "Philips Lumileds Rebel" LED emitters.
Certified by the "Energy Star"
Thermal Management, by the proprietary SFCT (Smart Forced Convection Technology) and PCT (Precision Cooling Technology) technology.
Optics Design that fully realizes the advantage of LED directional emission.

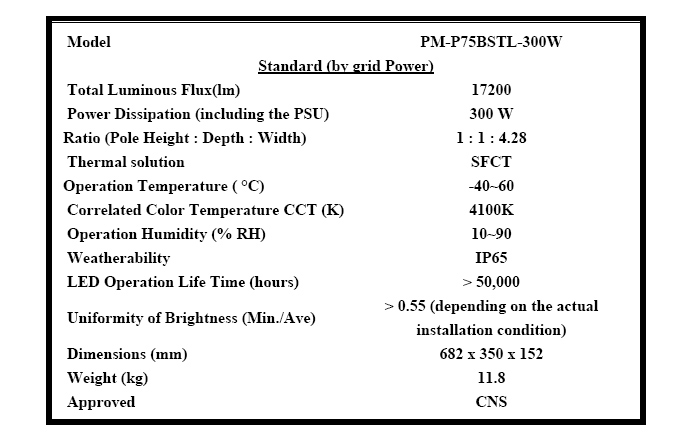

Specifications:
Wattage
300W
Model
PM-P75BSTL-300W- ES
Flux (lm)
21072
CCT (K)
5300
Input Power (W)
297
Power
YGE LL-150C- 85*2
Luminous Efficacy (lm/W)
70.95
Effective Beam Angle
140*50
Avg. Typical Lux
3M
444
4M
248
5M
160
6M
112
7M
80
8M
64
9M
48
10M
40
11M
32
12M
28
Pole Height
8M
10M
12M
Arm Length
1.33M
1.67M
1.5M
Tilt Angle
15°
15°
15°
Width
8M
10M
12M
Poles Distance
32M
40M
48M
Coverage
8M*32M
10M*40M
12M*48M
Illumination Uniformity
45%
Thermal solution
SFCT
Operation voltage (Vac)
85~280Vac (by Grid Power)
Operation Freq.(Hz)
50~60Hz (by Grid Power)
Operation Temperature (°C)
-40~60
Operation Humidity (% RH)
10~90
Weatherability
IP65
LED Operation Life Time (hours)
> 50,000

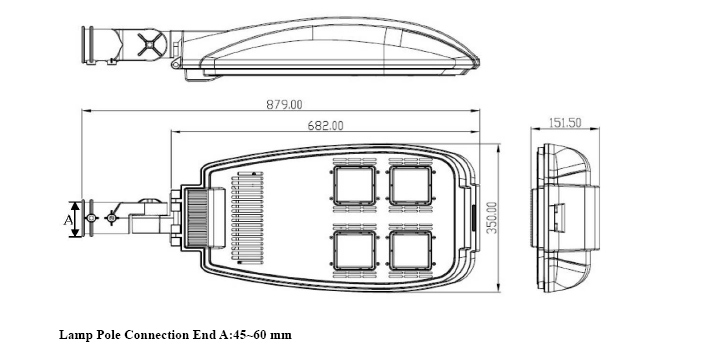

Dimensions (mm)
682 x 350 x 152
Weight (kg)
11.8

독립형 태양광 LED 가로등의 구성도



Product Description:

We have honor introducing the PM-A75BSTL-300W LED Street Lamp. Utilizing LED components from Philips-Lumileds Rebel, the total flux reached 17200 lumen with power consumption of only 300 Watt, sufficient to replace traditional HID or HPS lamps of 600 Watt. Benefitted from advanced optics technology, its projection is precision controlled within a defined square plot with exceptional homogeneity. Crossing over the technology and tradition ends, while its performance parts changed to LED technology, its outside retains the elegant curve and shape of traditional street lamps.



Product Application:

1. Optimal Pole Height 8 – 12 Meters
2. Road Width 8 – 12 Meters
3. Road Types Highway, Main Streets, Secondary Roads



Main Features:

1. Adopting the revolutionary Power Master LED modules, which integrates LED emitters,

optics and lens, and heat dissipation, all into a compact IP 65 Al-Gard platform.

2. LED components by Philips Lumileds Rebel.

3. No concerns of patent or IP infringement.

4. Unique square radiation pattern from the technology, no more bright-and

dark “zebra stripe” problems.

5. Exceptional Brightness Homogeneity, over 0.55 Min. / Ave. within the projection area.

6. Significant energy saving over traditional technology, over 60% *Note 1.

7. LED Operating Life: Over 50,000 hours *Note 2.

8. Weather ability: IP 65

9. Heat Dissipation : SFCT

Note 1 : Condition of : Pole height at 12 meters, average effective surface bright at over 17.5 Lux, the comparison of power consumption by 530 Watt LED street lamp set using Power Master, and 150 Watt street lamp set using tradition HIP/ HPS technology.

Note 2 : Lumen maintenance of LED components at over 70%.

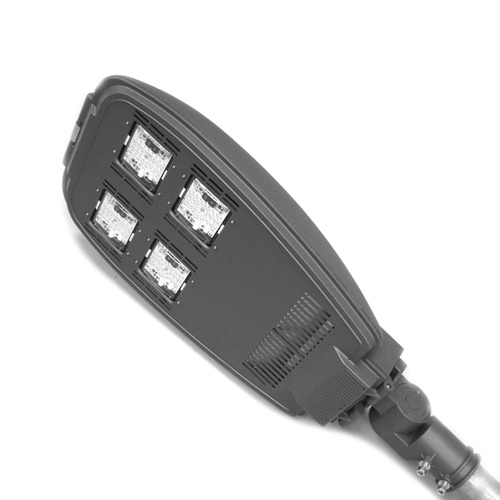

PM-P75BSTL- 300W LED Street Lamp




PM-P75BSTL-300W LED Street Lamp

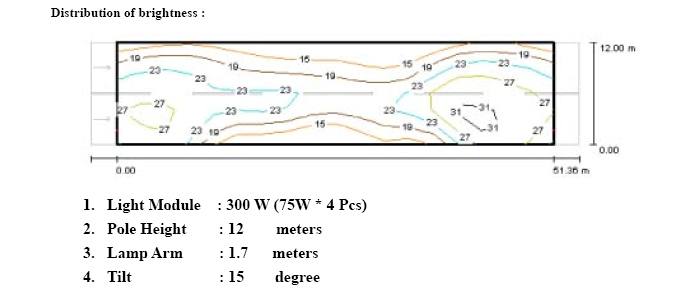

Lux readings over different height :

Height

Average Lux

Area

8M

49.5

8 * 34.2 M

9M

39.1

9 * 38.5 M

10M

31.7

10 * 42.8 M

11M

26.2

11 * 47.1 M

12M

12.0

12 * 51.4 M





PM-P75BSTL-300W LED Street Lamp
